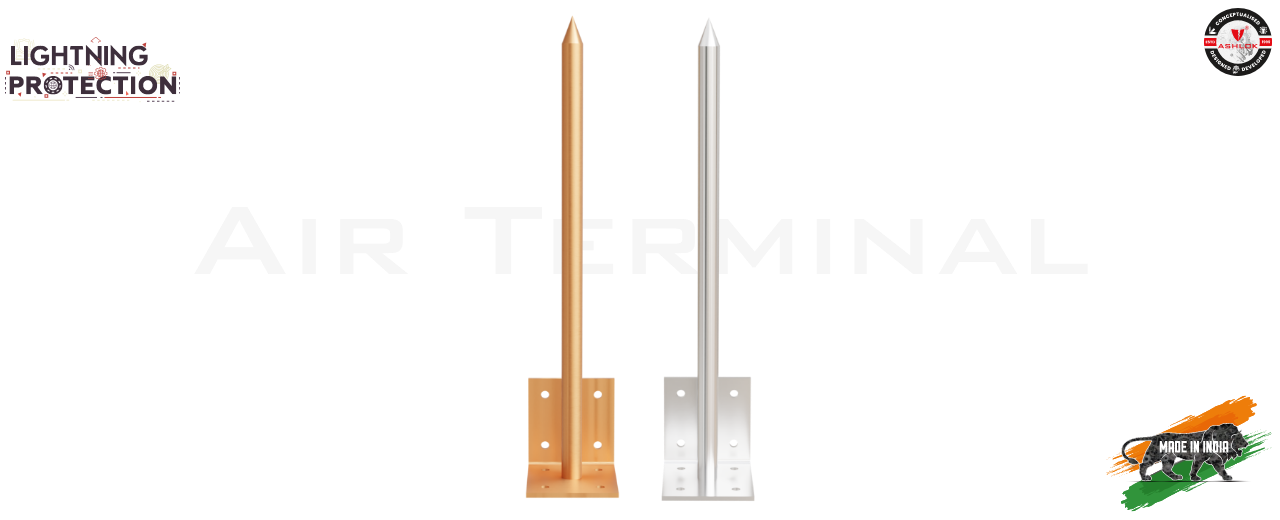

Air Terminal
Also known as Single Spike, this component constitutes the uppermost segment of a lightning protection system, aiming to intercept the advancing lightning leader. Crafted from a dense, remarkably conductive substance, the air terminal is available in diverse base materials and surface coatings.
Coverage of Conventional Type
| Protection Level | Protection Efficiency | Protection Angle Method (Height-Metres) | |||
|---|---|---|---|---|---|
| 20 | 30 | 45 | 60 | ||
| I | 0.98 | 20˚ | N/A | N/A | N/A |
| II | 0.95 | 35˚ | 25˚ | N/A | N/A |
| III | 0.90 | 45˚ | 35˚ | 25˚ | N/A |
| IV | 0.80 | 55˚ | 45˚ | 35˚ | 25˚ |
Offered in :
Spike Material : Copper or Stainless Steel (SS)
Base Plate : Copper or Stainless Steel (SS)
